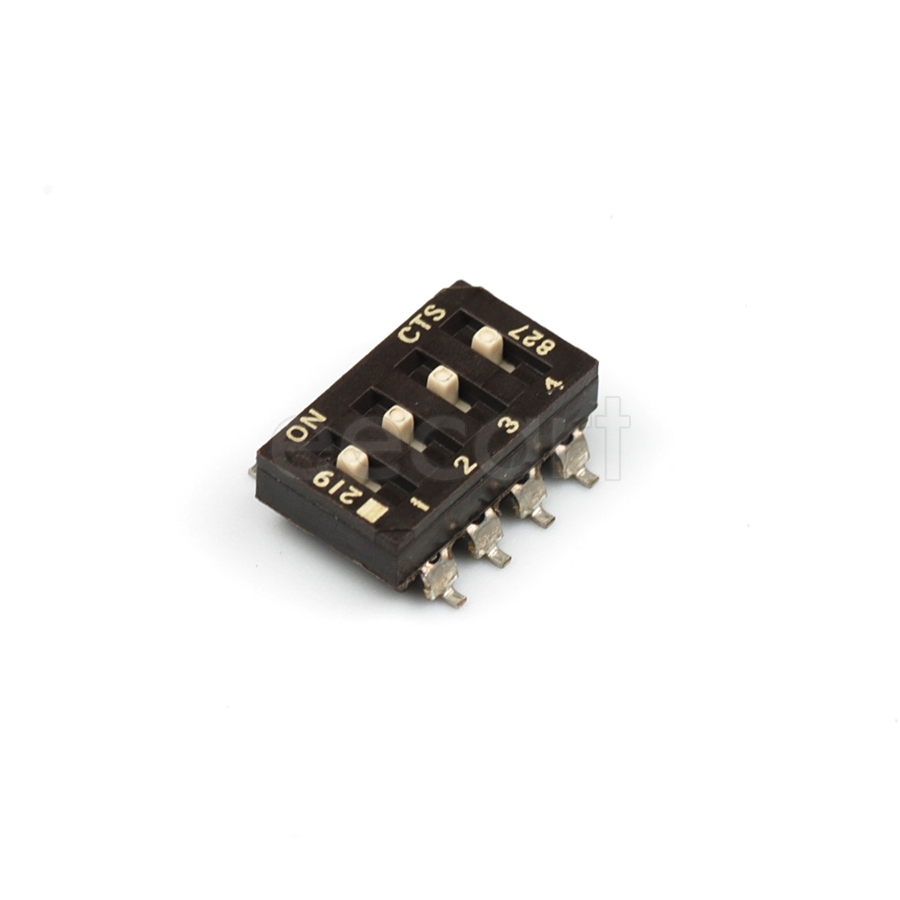

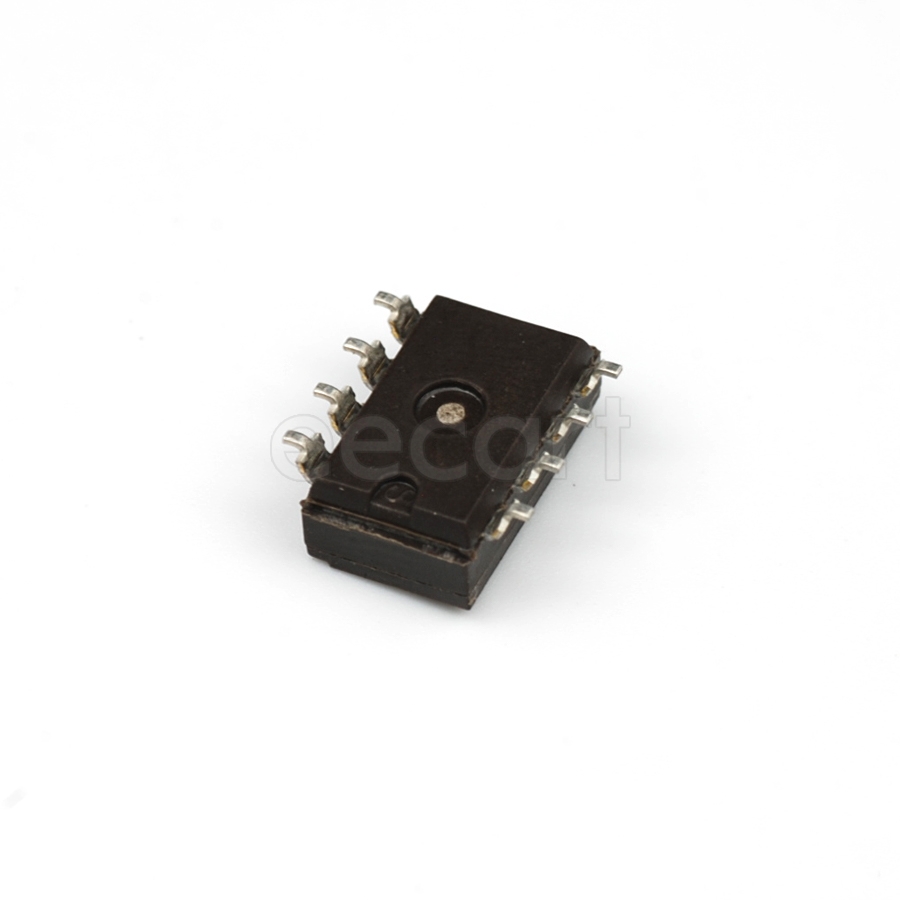

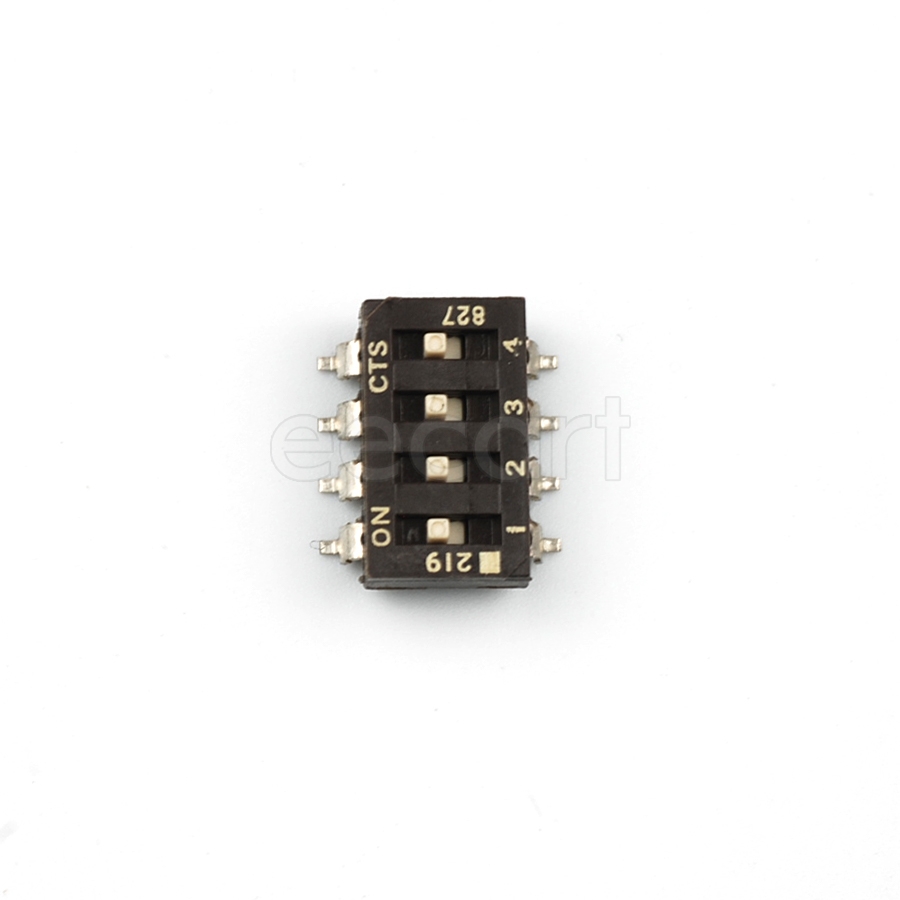

219-4MST
Manufacturer:
CTS Corporation
Mfr.Part #:
219-4MST
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:4 Current Rating:100 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 11.6332 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 4.05 mm |
| Circuit Type | SPST |
| Depth | 9.91 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Beryllium Copper |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 20 V |
| Orientation | Straight |
| Actuator Length | 250 µm |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Contact Resistance | 25 mΩ |
| Electrical Life | 2 kcycles |
| Mechanical Life | 2 kcycles |
| Actuator Type | Slide |
| Washable | Yes |
| Life (Cycles) | 2 kCycles |
| Packaging | Tube |
Stock: 9642
Distributors
pcbx
pcbxUnit Price$0.45653
Ext.Price$0.45653
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45653 | $0.45653 |
| 10 | $0.39156 | $3.91560 |
| 25 | $0.33855 | $8.46375 |
| 50 | $0.32301 | $16.15050 |
| 100 | $0.30818 | $30.81800 |
| 300 | $0.29403 | $88.20900 |
| 500 | $0.28053 | $140.26500 |
| 1000 | $0.26765 | $267.65000 |
| 3000 | $0.25536 | $766.08000 |
| 5000 | $0.24366 | $1218.30000 |
